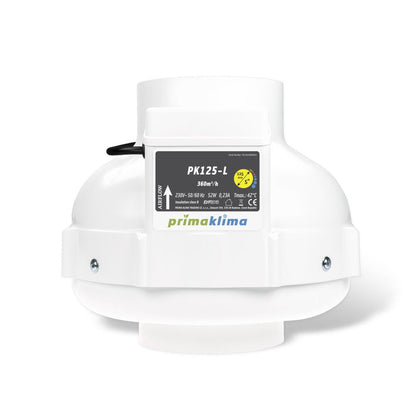

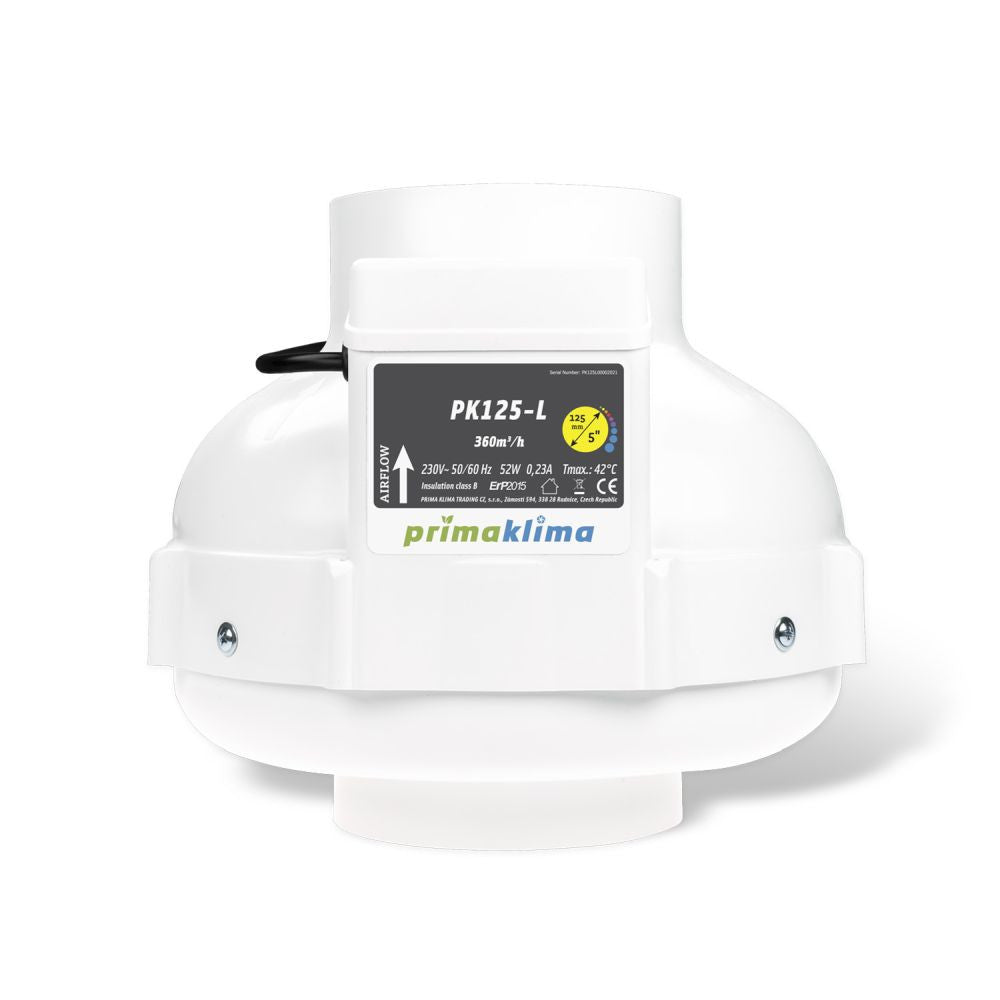

Prima Klima Rohrventilator PK125-L 125 mm - 420 m3/Std, 1-gang

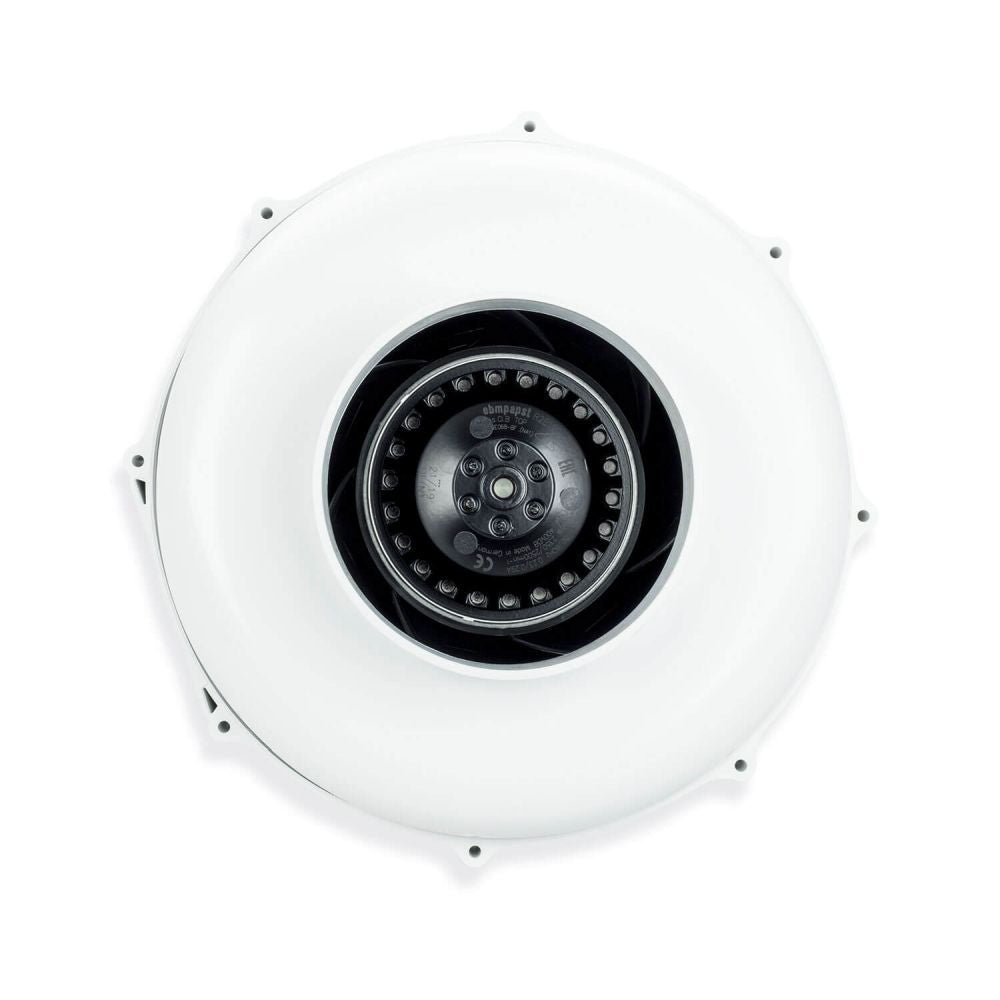

Highly efficient pipe fan equipped with an ebm-papst AC motor with backward curved blades. The AC motor has been optimally adapted to the casing design. The housing is made entirely of highly durable polyamide (nylon) resistant to impact and flame. Maintenance-free ball bearings with a long lifespan contribute to the exceptionally smooth operation of the motor.

Features:

• ebm-papst AC motor
• Backward curved impeller
• Aerodynamically optimized shape
• Impact-resistant and durable housing
• Connection and control system integrated into the housing

Technical specifications:

• Flange: 100 mm
• Max. air flow: 280 m³/h
• Power: 40 W
• Input: 230 V, 50/60 Hz, 0.18 A
• Tmax: 50 °C
• Dimensions: 244 x 241 mm (w x h)
• Weight: 2.3 kg
